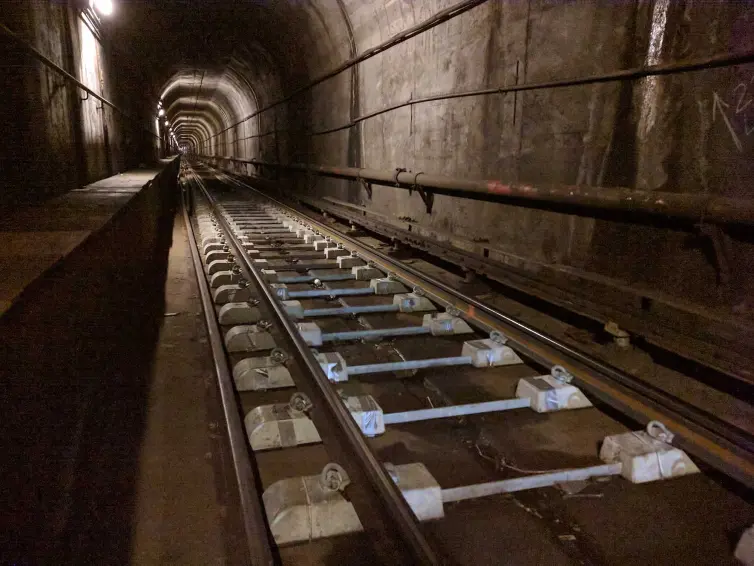

Secures 115 RE rail to a concrete track bed
Controls vertical, lateral, and longitudinal rail movements
Provides track noise and vibration isolation
Electrically isolates rail from track bed
Lateral adjustment of +/- 1 inch by 1/8 inch increments achieved through boot replacement
Lateral adjustment of +/- 1/8 inch achieved through toe insulator replacement

Utilizes non-threaded left or right handed spring style clips

The following are product assembly performance characteristics found by laboratory testing using industry standard test methods. The product performance stated below are reported as a per Resilient Tie assembly characteristics.

Vertical Stiffness – 140,000 pounds / inch deflection between loads of 4,000 to 12,000 pounds per unit assembly

Dynamic to Static Stiffness Ratio at 10 Hertz load rate - < 1.4

Lateral Load – < 0.150 rail head deflection with Vertical load of 14,000 pounds and Lateral load of 6,000 pounds per unit assembly.

Lateral Restraint - < 0.125 rail base deflection with Vertical load of 2,500 pounds and Lateral load at the rail base of 7,000 pounds per unit assembly

Longitudinal Restraint – approximately 2,500 pounds prior to rail slippage

Repeated Vertical and Lateral Load – 3 million cycles applied without unacceptable performance degradation. Loads applied as 10,000 pounds Vertical with 4,000

pounds towards field and 2,500 pounds towards gage.

High Voltage Withstand – resists 15,000 volts (DC)

Electrical Resistance – greater than 50 Mega Ohms at 750 volts (DC)

The above performance characteristics are provided for informational purposes and are based solely on previous testing. Actual performances may vary from those stated above.

Variations to the LB Foster Resilient Tie can be made to accommodate various custom requirements. For more information feel free to contact us.
